Under Tractor Quick Hitch Mounting Bracket LVA21000
Free Ground Shipping with USPS Priority Mail Delivery to the Lower 48 States

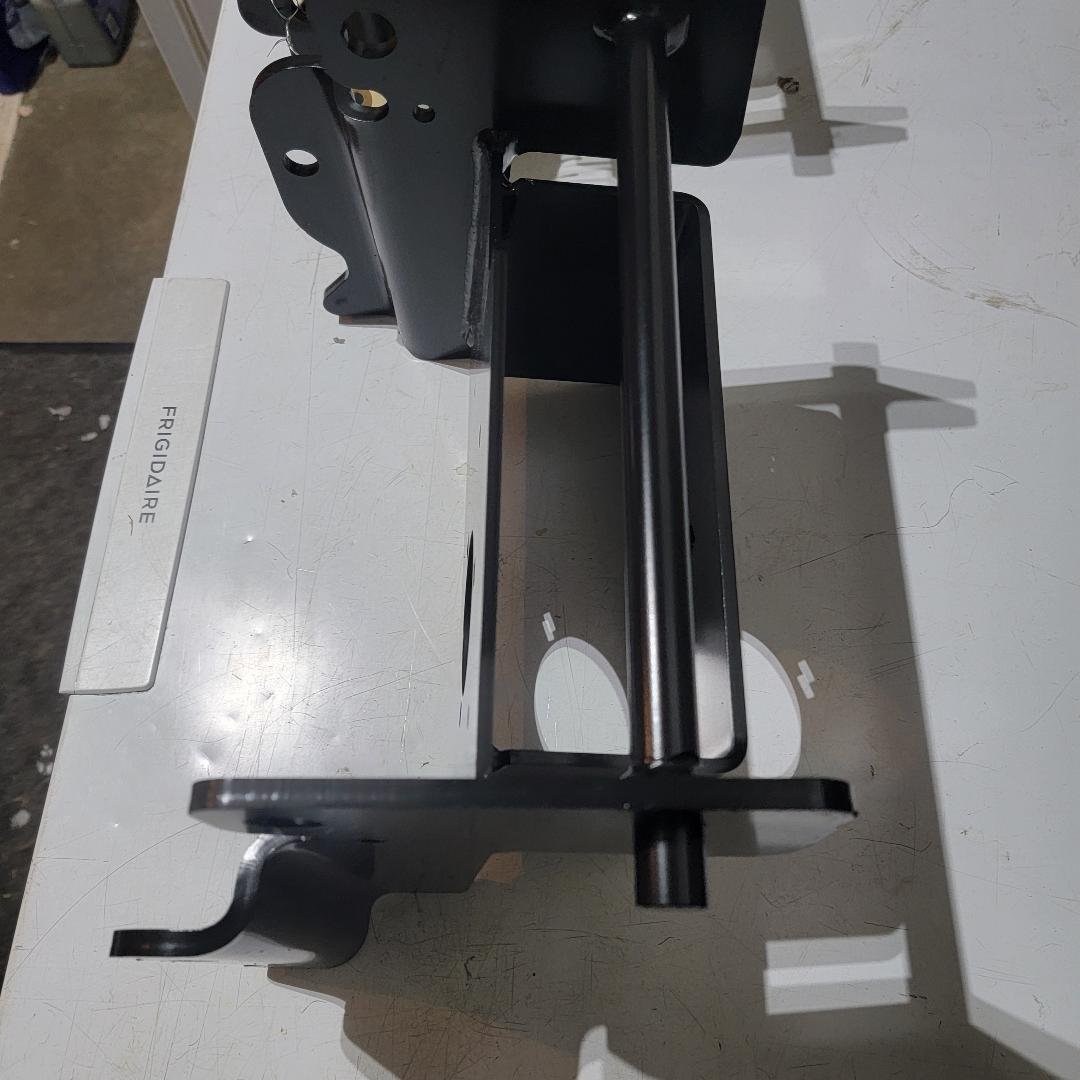

This part is the Quick Hitch Mounting Bracket which is the largest bracket installed on the tractor for supporting the Front Quick Tach Hitch.
The Brackets Condition- Our brackets are often either like new and unused or they have been previously installed and have light duty use. The brackets are in very good condition (some are brand new and have never been installed) We sell these brackets for less than half of their new selling price as we often get these with implements which are being traded or sold when tractors are traded and the new tractor uses a different implement mounting method.
This bracket fits or is used on the following machines**
1023E Deere 2013- 2022
1025R Deere 2013- 2022
Gen 2, 2025R 2018 - 2022 and 2025 to current
**Based upon the Deere Online parts book, Always check your machines serial number range for application. The results listed above are posted when the Part Number is searched for “all applications”. It’s up to you to check your machine’s serial number range to determine the parts fit and compatibility.
How this bracket is used
This bracket is the major support for the front Quick Tach Hitch. It is used on all tractors which require the front Quick Tach Hitch to support the Deere front 54” or 60” Snow plow. It is also used on the 47” and 54” Front Mounted Deere snowblowers.
On tractors which are using a front PTO driven implement, this bracket supports the 2 PTO shaft bearings, mounting cups and plates, etc.
On tractors which are using the front Quick Tach Hitch for the connection of the 54” or 60” Front Deere Snowplow, this bracket is used without the bearings or their related hardware. This bracket is the key to supporting any front implement on the 1 series or Gen 2, 2025r tractors.
This bracket is a very large and heavy bracket at nearly 24 pounds, which is critical to the proper support of the tractor Quick Tach Hitch mounted front implement.
Installing this bracket under the tractor
This bracket mounts by being positioned under the tractors center frame rails, the bracket is lifted into place. The steel pins on each end of this brackets frame are then slid into the machined slots on the tractors front frame mounted brackets, which are bolted to the frame. When this bracket is positioned into the slots, it is lifted and pivoted into position so the holes in the bracket align with the holes in the frame bracket on each side of the tractor.
While the bracket is held in position, A large steel pin (rod) is slid through the tractors frame and the brackets, to hold this bracket in position. Spring pins are placed in the drilled holes in each end of the steel pin, to secure the bracket and pin it in place under the tractor. Once this bracket is in place and the steel pin is slid through the brackets to support them under the tractor, a spring locking ring or spring loaded pin is inserted through the small hole in each end of the steel pin to secure it in place.
This steel mounting pin (rod) is not included with this bracket, but it is available for purchase under part number LVU13765. The spring loaded rings which secure the pin in place are Deere part number M84180 and two pins are needed for each pin.
Our Selling Price for this Key Part of the Quick Tach Front Hitch.
This bracket is part number LVA21000 which Deere lists at a retail price of $784.20. We sell this part brand new for $362.10, or at a 54% discount off new prices. Also, this part is very heavy to ship and weighs 28 pounds packed safely for shipment.
This part is sold without any PTO shaft bearings or other pieces. If you need the PTO parts for your machine, make sure to purchase the PTO kit for your machine and also make sure to order the correct bracket for your machine, based upon the tractors serial number and which mounting brackets are used on your machine.

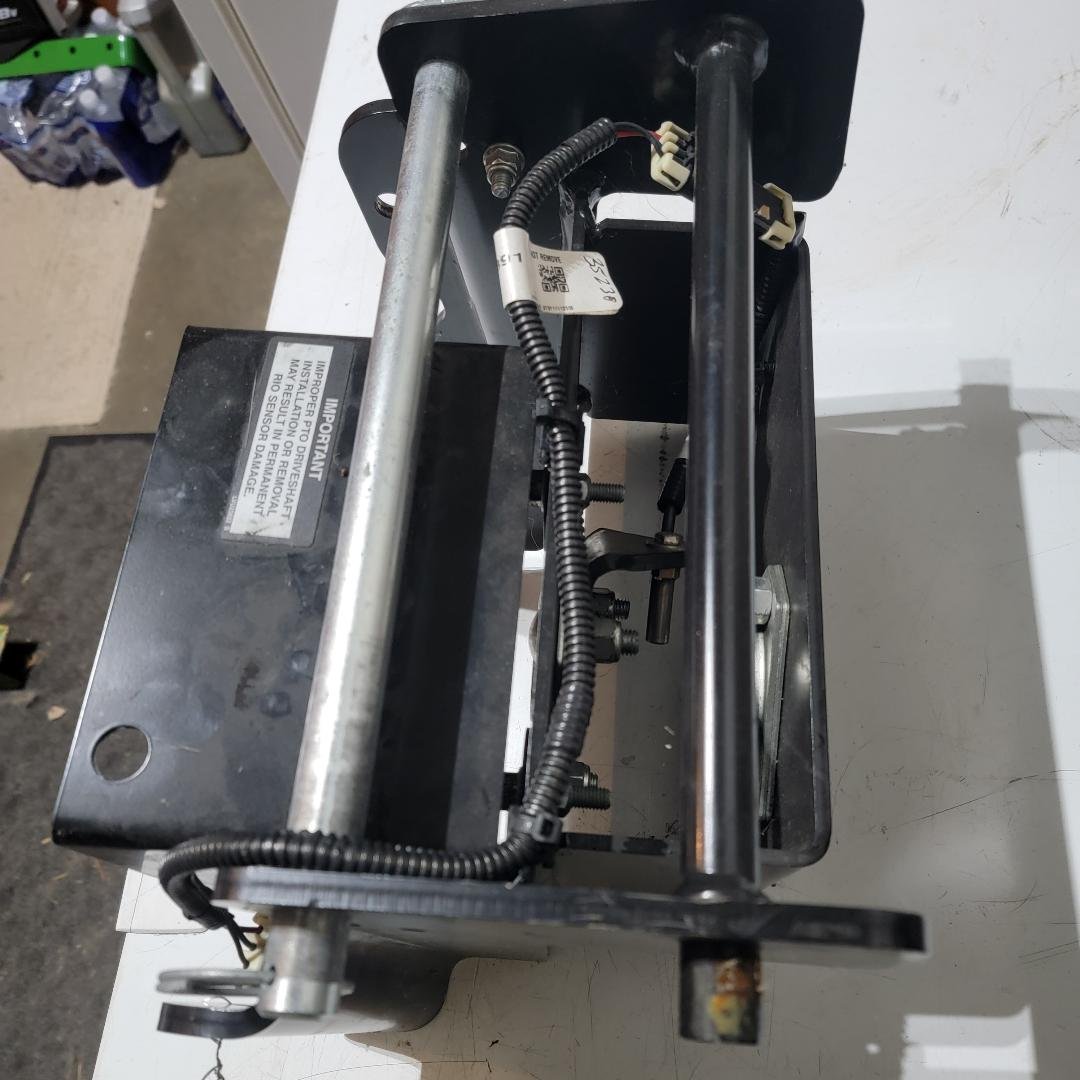

Please note, some of the photos show the same bracket fully assembled with the PTO shaft bearings and other parts. This is to show how the bracket is used when installed. The bracket sold under this listing is the bare bracket and does not contain any of the additional items shown such as bearings, bearing mounts or plates, RIO connector, etc. These images are shown for illustrative purposes only and the bracket listed here for sale in the bare bracket without any attachment rods, bearings or other parts.
If you need these other parts, you should purchase a PTO kit of the specific parts you need.
We do offer the long solid steel rods and the retention clips which are used to install this bracket under the tractor, under these part numbers on our site. Steel retention Pin (rod) is LVU13765 (1 required)
Spring Loaded Retention Rings to hold the Pin are Part number M84180, Qty used on the hitch are two rings per pin, a total of 4 are used on the tractors hitch.
