John Deere Quick Hitch Front Support Bracket kit, Includes LVU22047 and (2) LVU25908
Free Ground Shipping on all Purchases to the Lower 48 States
This kit includes the most commonly missing frame brackets needed to install a front blade or blower on a 1023e, 1025r, 1026r and Gen 2 2025r which uses the front Quik Tach Hitch.
This kit includes the following

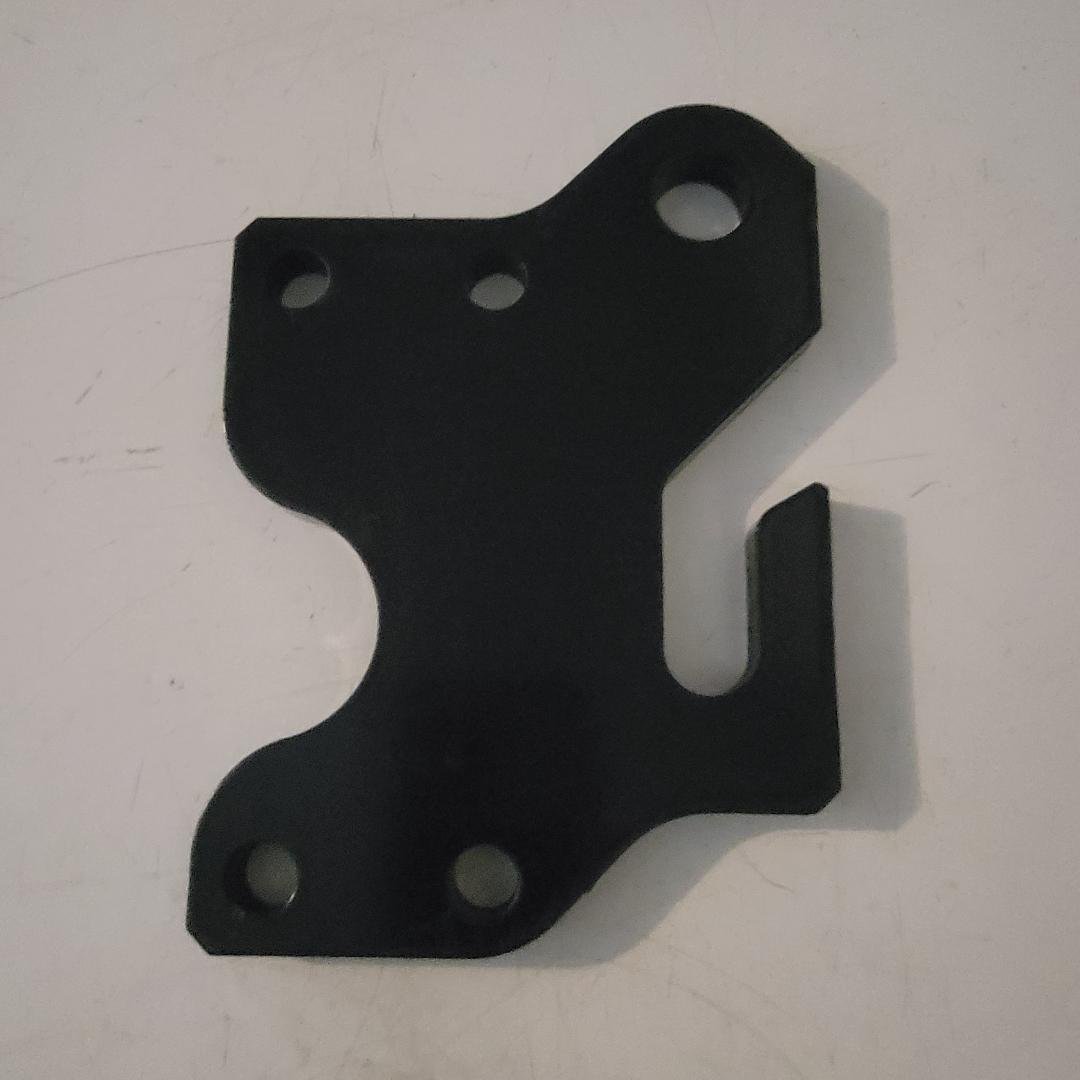

One front frame bracket, part number LVU22047
One Pair (two) of the LVU25908 under frame brackets
Mounting hardware including
(2) 19M7791 M12×40 Serrated Flange Bolts
(2) 19M7789 M12×30 Serrated Flange Bolts
(10) 14M7299 M12 Serrated Flange Lock Nuts
(6) 19M8946 M12×70 Serrated Flange Bolts

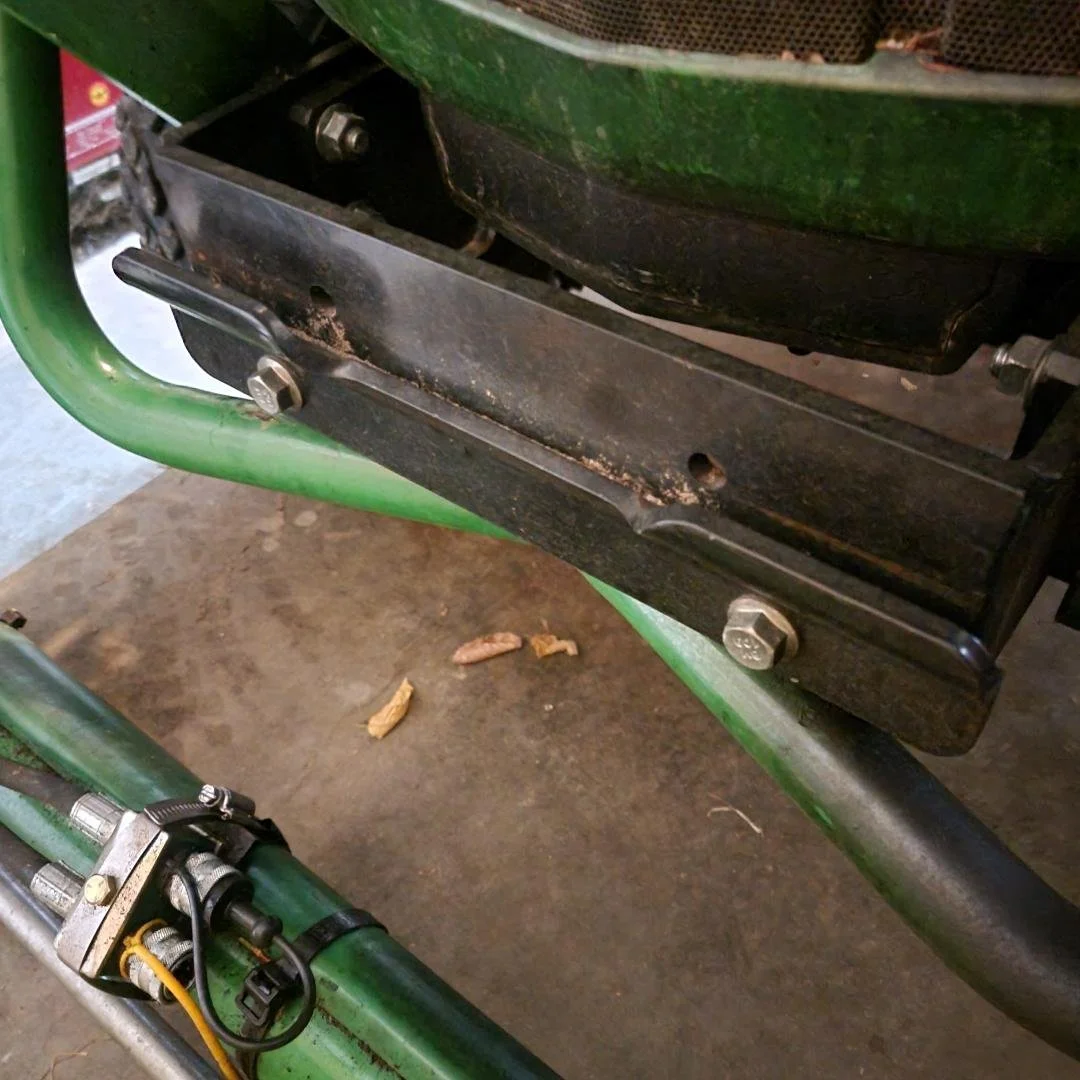

These LVU25908 brackets support the under tractor main PTO carrier bracket, that mounts under the tractor between the frame rails. Bracket LVU22047 is the front bracket which the Front Quick Tach Hitch assembly hangs on, off the front frame of the tractor. Also included are the special flange cap screws of Metric size and varying length, along with serrated flange lock nuts.
Made in America of top quality U.S. Steel to precise standards. These brackets are built to meet and exceed the standards of the OEM units.
Other Parts often needed and purchased with these parts include the following
Front Shims, LVU31514, One to three shims are used for proper installation
Front Hitch Support Pin, LVU13765, which is the long steel pin which holds the under tractor main PTO carrier bracket in place with (2) the Locking Ring, Split Ring Retainers part number M84180
We offer these parts as well on our site to help you complete your hitch installation.
Thank You for your interest in our parts.
